Honda Motorcycle dedicated driving recorder
HDC1S DRIVING VIDEO RECORDER
  • Aviation Connector

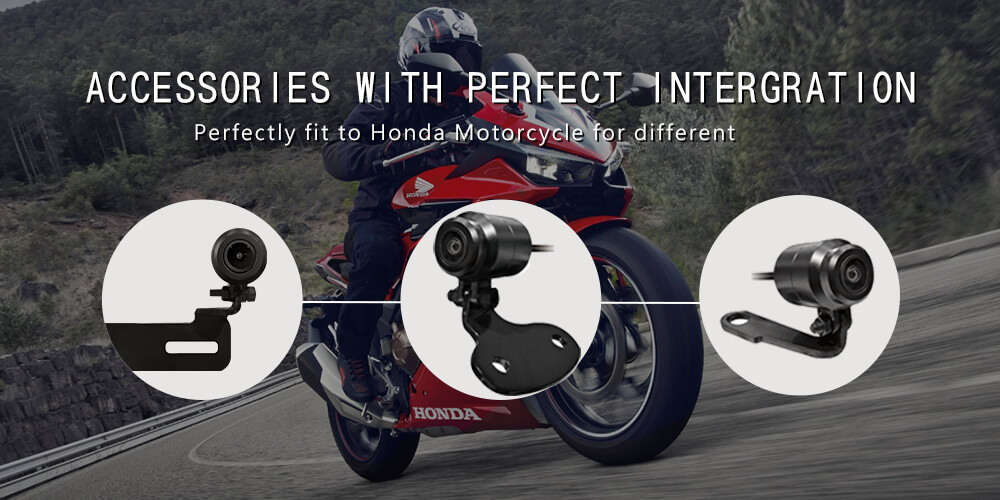

  • Exclusive camera brackets for Honda Motorcycle
  • Supercapacitor
  • Novatek chip set
  • SONY Starvis CMOS
  • Seamless looping video
  • Image connection does not leak seconds
  • Start video with the car
  • Shut down with the car
  • Metallic mini lens
  • IP67 waterproof and dustproof

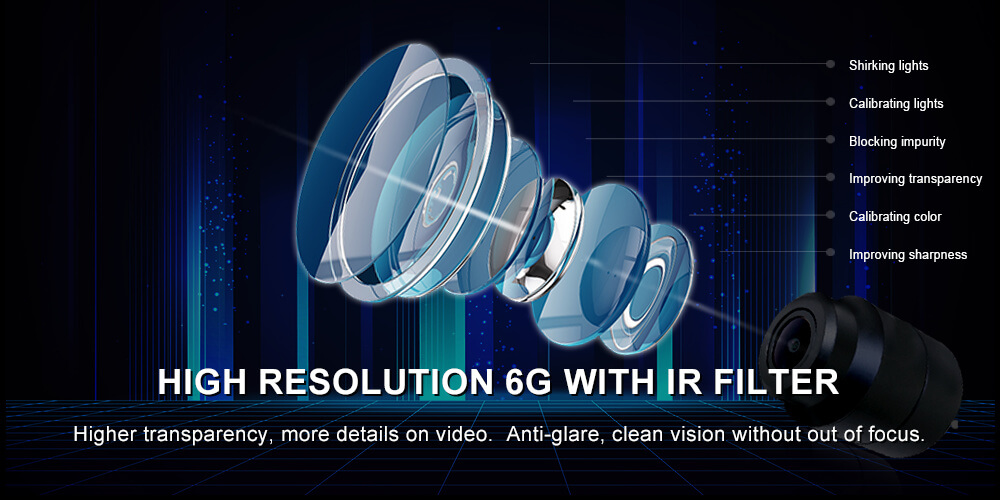

  • Separate lens 6G+IR filter
  • 140 degree high wide angle F1.8 large aperture
  • Maximum image resolution FULL HD 1080P 1920 X 1080
  • Machine status indicator (power on/off/video/card error message)
  • External high-sensitivity microphone independent radio

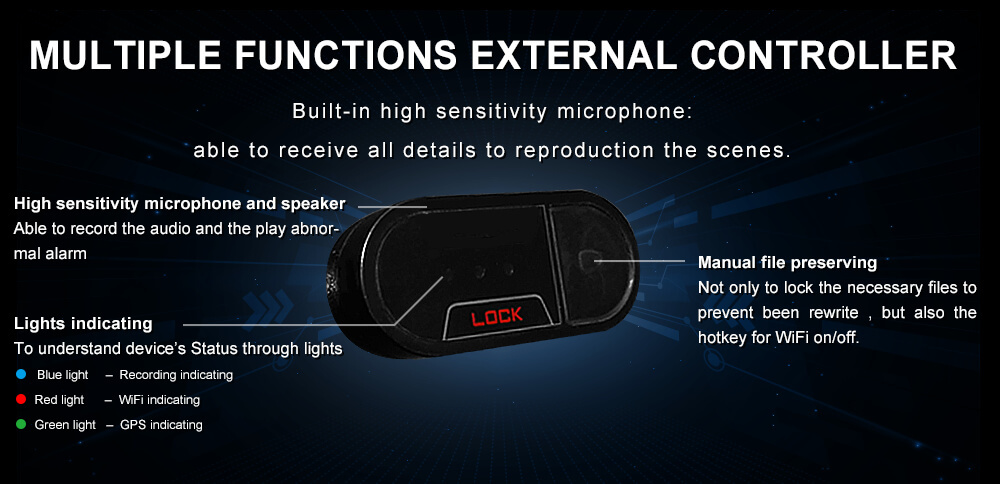

  • External independent controller
US 300
  • FHD 1080p
    FHD 1080p
  • Super Wide 140°
    Super Wide 140°
  • Controller
    Controller
  • IP67
    IP67
  • LCD 2.7Inch
    LCD 2.7Inch
  • SONY CMOS
    SONY CMOS
  • BSMI certification
    BSMI certification
  • Support Micro SD card
    Support Micro SD card
  • Replay accident dissension
    Replay accident dissension
  • GPS定位
    GPS定位
  • WIFI
    WIFI
  • Aperture F1.6
    Aperture F1.6
  • Supercapacitor
    Supercapacitor
  • Aviation Connector
    Aviation Connector
  • SONY Starvis CMOS
    SONY Starvis CMOS
  • Novatek
    Novatek
  • Built-in WiFi module with exclusive AmberCam app available for iOS Android system
    Built-in WiFi module with exclusive AmberCam app available for iOS Android system
  • WDR
    WDR
  • TS碼流
    TS碼流
  • Sound input
    External high-sensitivity microphone independent radio
  • Wire set
    Gold-plated waterproof anti-interference wire
  • Battery
    Explosion-proof and durable supercapacitor

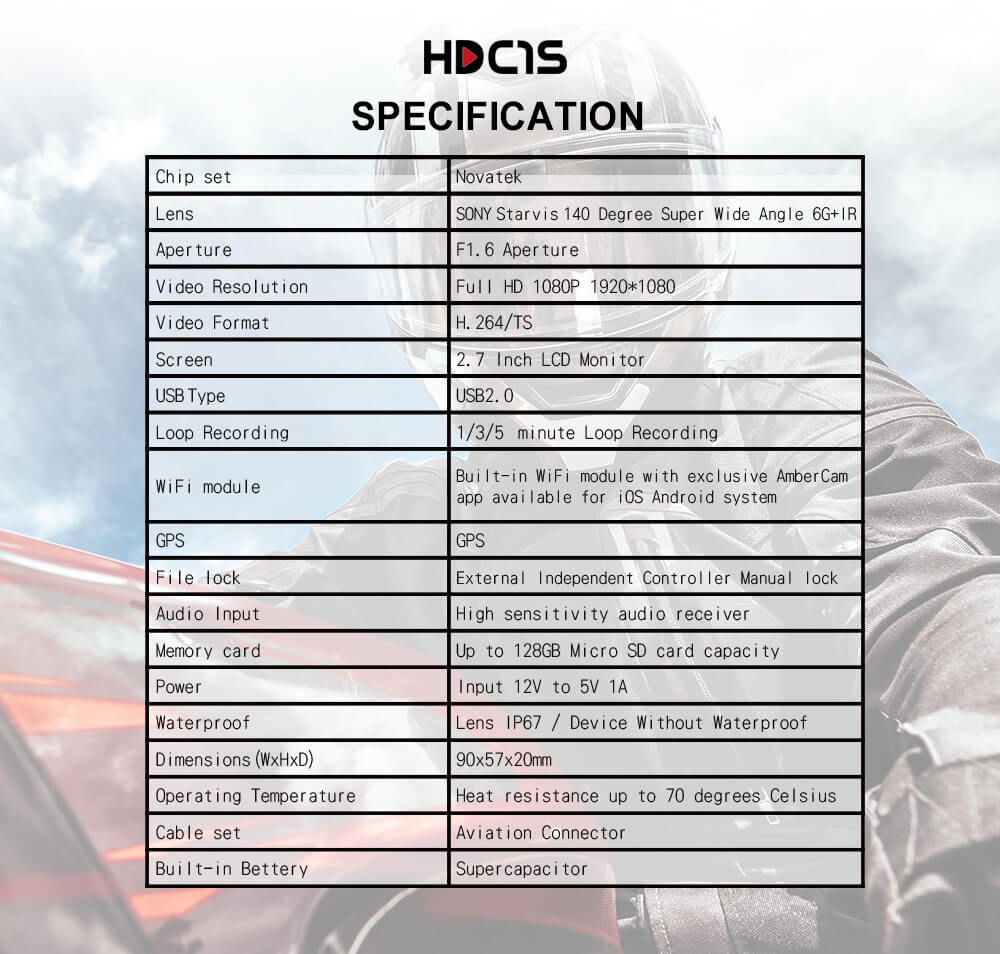

  • Chip
    Novetic chip
  • Photosensitive element
    SONY Starvis sensor
  • Operating temperature
    The maximum heat resistance is 70 degrees Celsius
  • Body size (WxHxD)
    90x57x20mm
  • Waterproof Specifications
    Lens IP67/host is not waterproof
  • Power Supply Mode
    Input 12V 5V 1A
  • Storage Space
    Maximum support for 128GB MicroSD™ memory card
  • Video Resolution
    Full HD 1080P 1920x1080
  • Locking function
    Manual locking with external independent controller
  • GPS module
    Built-in GPS, Support GPS positioning
  • Mobile device connection
    Built-in WiFi module, exclusive Amber Cam App supports iOS/Android system
  • Loop recording
    1/3/5 minutes loop recording
  • USB specification
    USB 2.0
  • Display screen
    2.7-inch LCD display screen
  • Video format
    TS stream
  • Lens
    140-degree ultra-wide-angle 6-layer all-glass lens
  • aperture
    F1.6 large aperture
